Transforming HVAC Design with 3D Modeling and BAS Integration

In the dynamic world of HVAC design, leveraging cutting-edge technology is key to maintaining a competitive edge. QA Graphics’ 3D HVAC design services, coupled with advanced Building Automation Systems (BAS) like Reflow, Niagara Framework, Johnson Controls, and Schneider Electric, are setting a new standard in the industry.

Enhanced Precision and Efficiency

3D HVAC models provide a clearer, more detailed representation of systems. This improved visualization leads to more accurate designs. End users get a realistic 3D representation of the specific pieces of equipment, allowing for easy operation and diagnosis.

Cost and Time Savings

QA Graphics offers these 3D models already built with animation. Customers pay an affordable one-time fee for reuse in any project. If a model is not available, it can be custom designed to the manufacturer’s specifications.

Superior Visualization

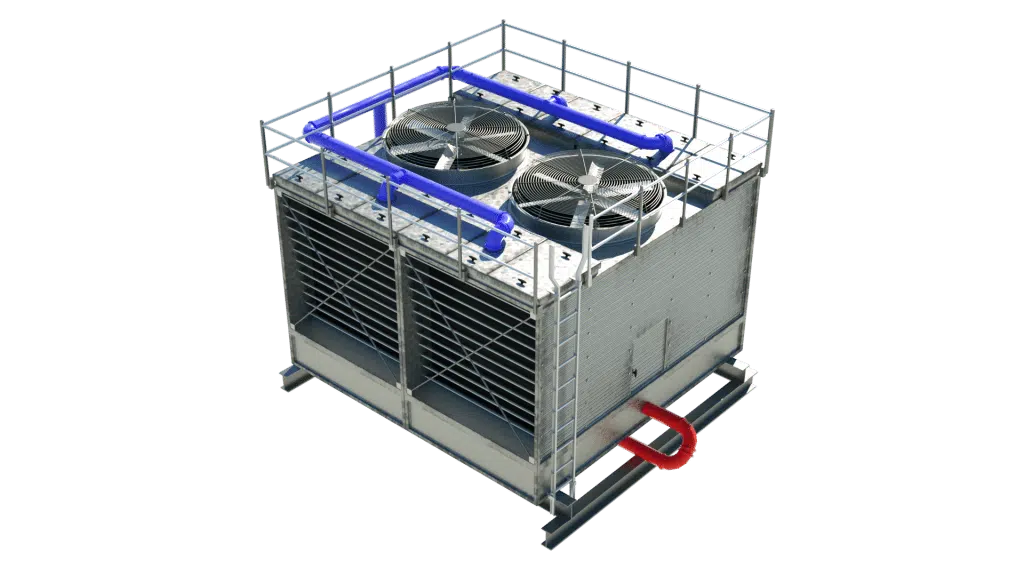

The power of 3D HVAC design lies in its ability to provide an almost lifelike representation of the final product. Currently, the library consists of close to 400 individual pieces, including AHUs, Air Coil Assemblies, Air Conditioning Units, Boilers, Chillers (Air-Cooled and Centrifugal), Condensers, and Compressors. The models can be made available in almost any file format with animations.

Custom 3D Modeling Services

QA Graphics offers state-of-the-art 3D modeling services tailored to meet specific project needs. Their rendering farm, equipped with Octane Render, delivers fast and professional-grade models. This technology allows for the creation of custom 3D graphics that are both high-quality and cost-effective. Whether you need detailed HVAC equipment or full-scale building designs, QA Graphics’ services can bring your vision to reality with unparalleled speed and accuracy.

Integrating BAS Systems: Reflow, Niagara Framework, Johnson Controls, and Schneider Electric

QA Graphics can provide these 3D models for almost any building automation system on the market. Lately, our largest users are incorporating these into the following systems:


Reflow by NiagaraModules provides an intuitive and powerful interface for visualizing and managing BAS data. Its drag-and-drop editor allows for easy customization, enabling users to create detailed dashboards and reports without needing advanced technical skills. Reflow’s compatibility with Niagara Framework ensures seamless integration and enhanced functionality.

Niagara Framework

The Niagara Framework by Tridium is a comprehensive platform for building automation. It facilitates the integration of diverse systems and devices, providing a unified, interoperable solution for managing HVAC, lighting, security, and energy management systems. With Niagara, users can achieve greater control and efficiency, optimizing building performance and reducing operational costs.

Johnson Controls

Johnson Controls offers a range of building automation solutions that enhance building performance and sustainability. Their BAS platforms provide comprehensive control over HVAC, lighting, security, and fire safety systems, ensuring seamless integration and efficient management.

Schneider Electric

Schneider Electric provides innovative building automation and control solutions designed to optimize energy use and improve operational efficiency. Their systems offer scalable solutions for HVAC, lighting, and security, ensuring that buildings operate at peak performance.


The shift to 3D HVAC design, combined with the integration of advanced BAS systems like Reflow, Niagara Framework, Johnson Controls, and Schneider Electric, is not just a trend but a significant advancement in the industry. It enhances precision, saves time and money, and provides superior visualization. QA Graphics stands at the forefront of this innovation, offering top-tier 3D modeling services that transform how HVAC projects are planned and executed. By adopting these cutting-edge solutions, professionals can ensure their projects are not only successful but also efficient and cost-effective.

Work with QA Graphics

For more information on QA Graphics’ 3D HVAC design services, visit their website. To explore Reflow, Niagara Framework, Johnson Controls, and Schneider Electric, check out their respective links: Reflow, Niagara, Johnson Controls, and Schneider Electric.
