Smart Phones for the Smart(er) Grid
Mobile applications are now being extended to influence how we use energy, and how we interact with the intelligent devices.
Eugene Fodor
Eugene Fodor,

Software Engineering Manager,
Digi International

Mobile applications on smart phones change the way we interact with the world.  We can find out what the local traffic patterns look like before we walk out our front doors enabling us to calculate which roads to take to save time.  They allow us to shop smarter through camera bar code scanner applications that allow us to compare prices on-line, and will eventually even allow us to find items more quickly in the store (e.g., your phone will tell you the dog food is on aisle two on the bottom shelf).  Mobile devices put at our fingertips a host of embedded accessories that we’ve not had access to before in a sleek, pocket-sized package: GPS, accelerometers, cameras, sensors, lighting and Internet access.  They combine these technologies allowing us to easily connect with coworkers, colleagues, friends, family and even strangers with a similar background.  Mobile devices also change consumer behavior.  We can sample music before we buy it, shop online, arrange for goods to be shipped directly to our homes, buy and sell stock, check account balances, pay bills, watch our weight, and so on.  Mobile applications influence and change the way we behave by increasing awareness.

Articles
Interviews
Releases
New Products
Reviews
[an error occurred while processing this directive]
Editorial
Events
Sponsors
Site Search
Newsletters
[an error occurred while processing this directive]
Archives
Past Issues
Home
Editors
eDucation
[an error occurred while processing this directive]
Training
Links
Software
Subscribe
[an error occurred while processing this directive]

Awareness is critical in tackling the energy problems that the Smart Grid begins to address.  The inherent intelligence we build into the energy backbone of the world needs to require change in human behavior if we want to make a significant impact and see real savings and curtailment of peak energy use.  Fortunately, mobile applications are now being extended to influence how we use energy, and how we interact with the intelligent devices that we, as engineers, design.  They enable the consumer to monitor and control air conditioners, dish washers and other home devices from their mobile phones.  Beyond the consumer, mobile applications for the smart grid allow a whole new class of applications for diagnosing and monitoring network health, and ultimately easing the burden of connecting devices.

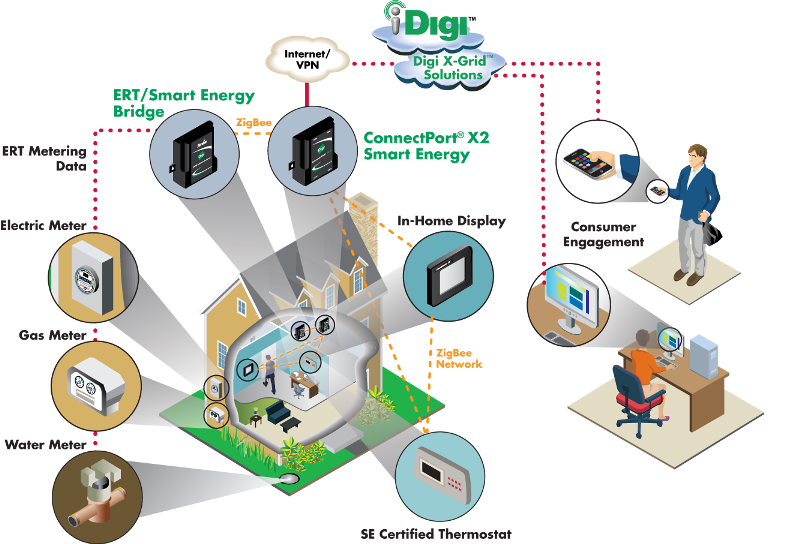

Smart Grid Device Ecosystem

As embedded designers and engineers, we know that to enable Smart Grid applications, an ecosystem of other embedded devices needs to exist.  Fortunately, that backbone is starting to take shape with the Smart Energy Profile defined by the ZigBee Alliance.  This application profile sits on top of the ZigBee Network stack and provides the definition for the devices that are now starting to be deployed such as meters, programmable communicating thermostats, smart appliances, in-home displays and other devices.  Initially, these networks were designed to provide power companies with a magic “curtail your load now please, Mr. Consumer” button to help drive down demand during peak loads, but this is clearly the beginning of a huge opportunity to allow consumers to take control of their energy usage.  Until the existence of these devices, power usage was a passive activity since the meter sat on the outside of residences and businesses, and energy consumers only viewed their bill once a month.  In-home displays now increase energy awareness by informing customers of their power usage via a thermostat-like device on their wall.

  Smart Grid Device Ecosystem

Smart Grid Device Ecosystem

Mobile Applications

Mobile applications take it a step further by allowing consumers to access energy usage data on their phones from anywhere a cellular connection is available.   This further empowers the tech-savvy, smart grid user by allowing him or her to change their home energy usage on demand.

Mobile devices cannot yet talk directly to low power RF ZigBee devices.  Even if they could, much of the business logic needs to sit on an IP network so that the user does not have to be in proximity of their home area network (HAN).  Smart phones work through IP networks and require them to leverage the Smart Energy ecosystem.  Mobile applications need to interface with large, scalable, secure, IP cloud-based services to support the business logic to drive behavior anywhere.  It is also necessary to enable remote device control, and to provide back-end data management, analytics and warehousing.  For example, cloud-based solutions exist that provide the basis for creating these mobile applications by connecting Smart Energy devices to cloud services and the end application.  This provides for not only consumer facing applications, but also applications for network and device diagnostics and health.  These installer-facing applications allow for easy on-boarding of devices onto existing networks.

Mobile Facing

So what does a typical mobile application that changes behavior look like?  Some key components include:

  1. Connects to the Smart Energy devices on the home area network
  2. Receives and sends information from the utility (e.g. pricing alerts, messages, curtailment events, confirmation notice—think pay your bill!)
  3. Affects your environment remotely (e.g., change the set point on your thermostat, turn off lights
  4. Reviews your historical usage for both recent and long-term usage
  5. Sets goals and receives positive and negative feedback
  6. Drives behavior through social networking to complete and share information

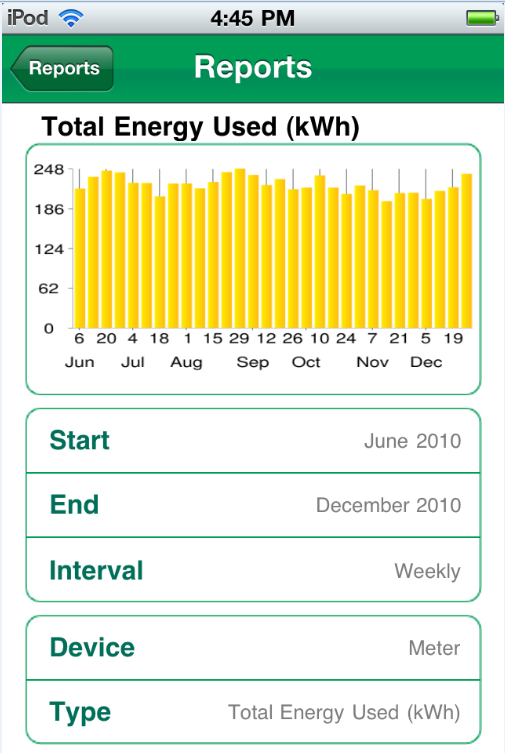

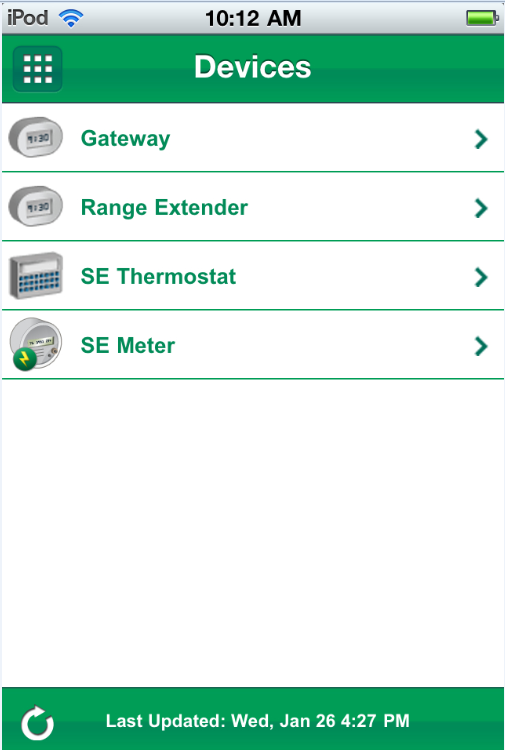

Solutions exist that utilize these key components to help consumers drive behavior.  For example, an application presents a dynamic view of the Smart Energy devices on a home network, and through the application and the Smart Energy ecosystem, each device can be told to “identify” itself.  Usually, the device then responds by sending a visual or auditory queue to the user.  The application extends the behavior required by the specification by empowering the user to remotely control the thermostats within an account.  The user can create a monthly budget to track their current usage against each meter and sub-meter in their account and receive instantaneous demand readings to see where and when energy is being consumed.  An energy saving avatar in the form of a piggy bank or fruit bearing tree could be used to represent how the user is tracking against their goal.  Interfaces to social networking tools drive competition by encouraging the user to compare their energy usage against their friends and homes with similar profiles.

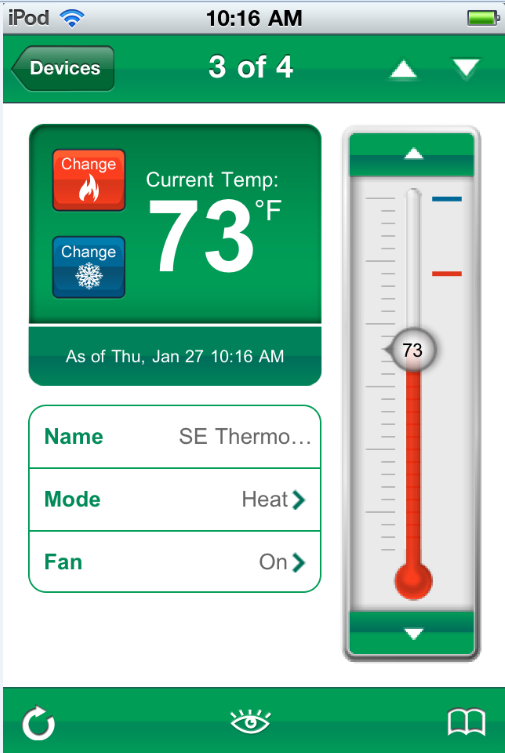

Examples Mobile Facing Applications

mainreportsThermostat

[an error occurred while processing this directive]Device Installation

Applications that can aid in device installation for both non-technical and technical people exist.  In Smart Energy, all devices are required to join a network with a unique installation code that ensures that the device is authorized to join the HAN.   Typically, this code must be hand entered, and despite a CRC-16 check at the end to ensure correct entry, manually entering and supporting the entry of tens of millions of codes is an expensive endeavor.  Furthermore, RF networks are notoriously difficult to setup, particularly when some devices cannot be physically relocated—washer/dryer hook-ups are located right next to the meter, and no one has aluminum siding, right?  Installer/diagnostic applications exist that can reduce installation costs and make set up easy.  This is accomplished through back-end key management and bar code scanning through a camera, and network discovery tools that securely connect to back-end systems.  Installers are presented with tools to help them look at link quality indicators and RSSI values to ensure strong connectivity.  This enables the installer to identify networks where range extenders need to be deployed decreasing the risk of truck rolls.

Installer Application Example

Devices

Conclusion

Mobile applications for the Smart Grid are just now being deployed, but are rapidly being developed.  In the future, consumers will be able to compare their energy usage with similar homes by identifying comparable homes using cloud service data and mapping tools built into their mobile applications.  Consumers will control, monitor and even sell energy back to the power company during peak periods when the price of energy favors their pocketbooks.  Installers will use GPS to identify which residence they are at and ensure that the right devices get installed in the right home.  Mobile applications will diagnose connectivity issues on the fly ensuring cost effective and reliable delivery of energy data and management.  In short, mobile applications integrate the technologies that will drive positive change.

About the Author

Eugene Fodor is a Software Engineering Manager at Digi International.  He has more than 15 years wireless hardware and software design experience and develops applications for the Smart Grid.  For more information about Digi, visit www.digi.com
