Beyond Commissioning: The Role of Automation



Michael R. Brambley and Srinivas Katipamula
Pacific Northwest National Laboratory2

        The Role of Automation1

Michael BrambleyMichael Brambley manages the Building Systems Program at Pacific Northwest National Laboratory (PNNL), where his work focuses on developing and deploying technology to increase the energy efficiency of buildings and other energy using systems.  His primary research thrusts in recent years have been in development and application of automated fault detection and diagnostics and wireless sensing and control.  He has been with PNNL for  17 years before which he was an Assistant Professor in the Engineering School at Washington University in St. Louis.  He holds M.S. (1978) and Ph.D. (1981) degrees from the University of California, San Diego, and the B.S. (1976) from the University of Pennsylvania, and is the author of more than 60 technical publications and numerous research project reports.  He is an active member of the American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) for which he has served on technical committees for Computer Applications and Smart Building Systems.  Michael has been the organizer of numerous seminars and symposia at ASHRAE’s semi-annual meetings and is a member of ASHRAE’s Program Committee.  In addition to several other professional organizations, Michael is a member of the Instrumentation, Systems, and Automation Society (ISA) and Sigma Xi, The Scientific Research Society.

Srinivas KatipamulaSrinivas Katipamula received his M.S. and Ph.D. in Mechanical Engineering in 1985 and 1989, respectively, from Texas A&M University.  He has been working as a Sr. Research Scientist at Pacific Northwest National Laboratory (PNNL), in Richland, WA, since January 2002.  For two years (2000 through 2001) he managed the Analytics Group at the Enron Energy Services (EES).  Before joining EES, he worked at PNNL for 6 years and prior to that he worked for the Energy Systems Lab at the Texas A&M University from 1989 to 1994.  He has authored or co-authored over 60 technical publications, over 40 research reports, and made several presentations at national and international conferences.  He is an active member of both American Society of Heating, Refrigeration, and Air Conditioning Engineers and the American Society of Mechanical Engineers.


How is commissioning likely to be performed 20 or 30 years from now? Will technology advance to the state where building systems and equipment are automatically commissioned on an on-going basis as conditions demand? The authors of this article believe it will and that the technologies that appear on the pages of Automated Buildings every month—wireless communication, automated diagnostics, advanced controls—are the seeds for the technology that will provide these capabilities.

This article takes a brief look at the benefits of commissioning and describes a vision of the future where most of the objectives of commissioning will be accomplished automatically by capabilities built into the building systems themselves. Commissioning will become an activity that’s performed continuously rather than periodically, and only repairs requiring replacement or overhaul of equipment will require manual intervention. The article then identifies some of the technologies that will be needed to realize this vision and ends with a call for all involved in the enterprise of building commissioning and automation to embrace and dedicate themselves to a future of automated commissioning.

"The Automator"
Articles
Interviews
Releases
New Products
Reviews
Forums
Sponsors
Archives
Past Issues
AutomatedBuildings.com

Cylon

The Value of Commissioning

Retro-commissioning of existing buildings reduces energy use by anywhere from a few percent to over 60% of pre-retro-commissioning consumption, with most savings falling into the range of 10% to 30% (U.S. DOE undated; Haasl and Sharp 1999; Claridge et al. 2000; and Liu et al. 2002). These savings result from detecting and correcting problems such as:

  • incorrectly installed equipment (e.g., backwards fans)

  • incorrectly implemented control algorithms (e.g., economizing cycles)

  • inefficient set points

  • unexpected equipment and lighting schedules that waste energy

  • missing, failed and uncalibrated sensors.

Energy savings are more difficult to establish for new construction, but by using building simulation, the savings associated with commissioning can be estimated. A recently published meta-analysis (Mills et al. 2004) found median cost savings on energy of 15% and payback periods of 0.7 years for retro-commissioning of existing buildings. For commissioning of new buildings, the study found a median payback period of 4.8 years.

While these savings are impressive, penetration of commissioning3 in the buildings market remains small. A recent report (Quantum Consulting 2003, pp. 1-3) on commissioning in public buildings states “While the concept of commissioning is increasingly accepted, there are still barriers--particularly with regard to cost--to implementation of the kind of thorough, independent third-party commissioning that is necessary for the full benefits of commissioning to be realized.” Only a small fraction of new construction and a very small fraction of existing buildings have been commissioned. Even when performed, pressures exist to keep costs down, which in some cases limits the thoroughness to which the commissioning is performed. The two factors that likely play the most significant roles in limiting the widespread adoption of commissioning and retro-commissioning are: 1) lack of knowledge of the benefits of commissioning by key decision makers and 2) the cost of commissioning. This paper focuses on how the costs of commissioning could be lowered substantially by automating the commissioning processes. Fortunately, reducing cost also reduces barriers in decision making, making acceptance by decision makers easier even in the absence of information. Changes to how commissioning is executed that reduce its cost and make it a routine part of how building systems are designed, installed, and operated could in the long run better promote the objectives of commissioning than keeping it a distinct practice. Key to this is reducing the labor intensity of commissioning by automating as many of the processes involved as possible. Compared to the cost of labor, automation technology is inexpensive.

Hypothesis – There’s a Better Way

Commissioning provides important benefits to both new and existing buildings, but there may be a better way to achieve these benefits. In the long-term future (say 20 or 30 years from now), most (but not all) of the objectives of commissioning could be provided using automated processes, reducing many of the barriers that exist today for commissioning and impacting a much larger portion of the building stock. Furthermore, doing so could increase consistency in the commissioning process, improve the reliability of building systems, and make the process of assessing performance, which is a critical part of retro-commissioning, a truly continuous process.

How might this be done? First, identify processes that produce the desired outcomes that could be done automatically. Then develop building equipment, systems, control systems, and tools that implement these processes automatically. Gaps between the automated processes could be filled by manual procedures, ensuring that the activities that absolutely require human intervention and tie the automated processes together are executed efficiently and cost effectively.

In the next two sections, we first provide a vision for commissioning in the distant future after the automated processes are fully developed and implemented, then take a critical look at commissioning to identify the processes that require direct human involvement and processes that do not and could be automated. We then identify technologies that are key to realizing the automated processes and conclude by identifying research and development that will be essential to accomplishing our vision for commissioning of the future.

In doing this, we are not suggesting that commissioning and efforts to promote it be suddenly terminated today. On the contrary, we believe that commissioning as conducted today is important as a transition process. It provides important benefits, but as with most things, it needs improvement over time. Our vision is for the long term. It will not be realized tomorrow, but the vision can help guide R&D and product development decisions so they lead us to a future where the benefits of commissioning permeate the entire building enterprise. Likewise, as this technology and tools embodying it emerge, commissioning should adapt and change to assimilate these new capabilities, making the commissioning process faster, less expensive, more thorough, more consistent, more reliable, more cost effective, more continuous, and appealing to more of the market.

Commissioning for the Future—Highly Automated and Efficient

CatNet Systems When operation of a new building or new piece of equipment or system is started in the future, with the push of a “start” button, equipment and systems should all test themselves, identify any installation or configuration problems, automatically fix problems amenable to “soft” solutions, and report the need for “hard” solutions requiring replacement or installation of hardware. A report on the performance of all building systems and equipment should be automatically generated, delivered to key recipients, and stored electronically for future reference and updating. During initial operation (e.g., for the first year) and continuing over its lifetime, the system should optimize itself, integrating its behavior with external constraints, such as occupancy, occupant behavior and feedback, energy prices, demand charges, and weather. Although most of the optimization should take place during this initial period of say a year, the building systems should continue to optimize themselves as prices change, spaces are converted to different uses, tenants change, and building equipment itself ages and wears. Using prognostics, systems should automatically inform building staff regarding expected lives and recommended service times for equipment. Diagnostics should detect degradation and failure, make “soft” fixes when possible (alerting building staff to changes made and electronically documenting changes automatically made for future reference) and alert staff to performance degradation, impending failures and required maintenance to prevent them.

Realization of this vision will present unique technological challenges, but methods under development (some examples of which are provided in the next section) are addressing these differences. Technology will evolve over time and change the practice of commissioning, bringing benefits to building owners and occupants. Ours is a vision for buildings of the future that automatically will perform many of the actions required to meet the objectives of commissioning, where technology will provide the cornerstone for achieving this future.

What Parts of Commissioning Could be Automated?

The major tasks composing commissioning of new buildings and retro-commissioning of existing buildings are shown in Table 1 by phase of the project. Some processes are critical to accomplishing the objectives of commissioning. Other processes exist to support commissioning specifically as it is performed today. If the overall process of commissioning were changed, some of these processes might become unnecessary or would be modified considerably. The same overall objectives might be achieved without an identical set of processes. Table 1 includes designations of whether activities would be manual (M) or automated (A) in a highly automated future for commissioning. Commissioning objectives would be established largely by standards and specialized to specific projects by detailed objectives being automatically inherited by associating objectives with generic types of commissioning projects. For retro-commissioning, most activities would become a routine part of building operation and maintenance and might not require explicit development of objectives. Similarly, objectives associated with equipment startup would be unneeded because all equipment would be automatically started up and tested with standard automated start-up routines satisfying standard objectives.

Table 1.  Major Commissioning and Retro-commissioning Activities

New Construction Commissioning

Retro-commissioning Existing Buildings

1.   Conceptual or pre-design phase
a. Develop commissioning objectives (A)
b.
 Hire commissioning provider (M)
c.
 Develop design phase commissioning requirements (A)
d.
 Choose the design team (M)

1.   Planning phase
a. Develop commissioning objectives (A)
b.
 Hire commissioning provider (M)
c.
 Review available documentation and obtain historical utility data (A)
d.
 Develop retrocommissioning plan (A)

2.   Design phase
a  Commissioning review of design intent (A)
b.
 Write commissioning specifications for bid documents (A)
c.
Award job to contractor (M)

(No design phase activities)

3.   Construction/installation phase
a. Gather and review documentation (A)
b.
 Hold commissioning scoping meeting and finalize plan (M)
c.
 Develop pre-test checklists (A)
d.
 Start up equipment or perform pre-test checklists to ensure readiness for functional testing during acceptance (A)

2.   Investigation phase
a. Perform site assessment (M/A)
b.
 Obtain or develop missing documentation (A)
c. Develop and execute diagnostic monitoring and test plans (A)
d.
 Develop and execute functional test plans (A)
e.
 Analyze results (A)
f.
  Develop master list of deficiencies and improvements (A)
g.
 Recommend most cost-effective improvements for implementation (A)

4.   Acceptance phase
a. Execute functional tests and diagnostics (A)
b.
 Fix deficiencies (M)
c.
 Retest and monitor as needed (A)
d.
 Verify operator training (A)
e.
 Review O&M manuals (A)
f.
  Building/retrofit accepted by owner (M)

3.   Implementation phase
a. Implement repairs and improvements (M)
b.
 Retest and remonitor for results (A)
c.
 Fine-tune improvements if needed (A)
d.
 Revise estimated energy savings calculations (A)

5.   Post-acceptance phase
a. Prepare and submit final report (M/A)
b.
 Perform deferred tests (if needed) (A)
c.
 Develop recommissioning plan/schedule (A)

4.   Project hand-off and integration phase
a. Prepare and submit final report (M/A)
b.
 Perform deferred tests (if needed) (A)
c.
 Develop recommissioning plan/schedule (A)

Source of original table without M and A designations:  Haasl and Sharp  1999

Commissioning plans similarly would be specified automatically based on information automatically obtained from design documents and only limited information would be input manually (e.g., special constraints on schedules). Design information would be automatically stored as developed and shared throughout the life of the building. This would include objectives and intent behind the design. Automatic storage and universal data sharing protocols would eliminate the need to manually take off information from drawings or re-input information developed in earlier phases. Ultimately, even existing buildings that were designed before automated data storage was routinely used, will possess systems that will automatically detect all aspects of the buildings, systems and equipment installed, generate the equivalent design, and evaluate it.

PlantPROCORE Designs will be automatically evaluated with respect to meeting design intents as well as energy and other standards. For many years, researchers have studied the design process and developed methods for automating both design generation and evaluation. A sampling of issues and advancements in design automation can be found in Gero 2002, Gero 2000, Caldas and Norford 2002, Iliescu et al. 2000, Fleming and Waterbury 1995, and Fleming and Aygen 2001. Research in these fields will provide the basis for automation of design review and revision performed as part of commissioning.

To the extent that commissioning specifications are still required in bid documents far in the future, most of the required language might be generated automatically, reviewed manually, and revised manually in special cases where required. Eventually, though, all documents will be reviewed automatically. Computer-based tools will parse text and “interpret” the meaning, and evaluate it with respect to needs and design criteria. Given information about the equipment and systems in a building or specified by the design, checklists (to the extent still needed) could be generated automatically. With some exceptions, most checklists would be eliminated because checks would be performed automatically. Lists might remain only as an organizational form for presenting results to human users. Just-in-time facility documentation (Song et al. 2002) may become the basis for operation and even parts of commissioning and retro-commissioning. Even proper installation of equipment (e.g., whether any fans are installed backwards) could initially be checked automatically. Some problems might require visual inspection after initial automatic detection of problems, but the labor for this would be highly targeted to problem situations.

All testing, data collection, analysis, and interpretation of results would be performed automatically. Examples of how some tests could be executed automatically today are given by Katipamula et al. 2003, PECI and Battelle 2003, and Brambley and Katipamula 2003. These capabilities are based on research and development in the fields of automated fault detection, diagnostics and prognostics.4 “Fixing deficiencies” and “implementing repairs and improvements” are designated in Table 1 as being done manually; however, only repairs and improvements requiring physical repair, replacement, or reinstallation require human intervention. As shown in PECI and Battelle 2003 and Katipamula et al. 2003, some repairs such as revising control code, changing set points, and recalibrating sensors might be done automatically with no human intervention except to read a short report from the computerized system regarding actions it took. Automatically retuning of control algorithms is also possible today for some applications and most tuning will be done automatically in the long-term future.

As indicated in Table 1, most commissioning activities will be done automatically at some time in the future. People will still need to coordinate the processes and ensure that reporting to owners and management is appropriate, but many of the commissioning activities executed manually today will become automatic. This transformation will reduce the labor, time, and cost of commissioning and help overcome some of the key barriers that widespread application of commissioning faces today. Reaching that future, however, will require advances in key enabling technologies and then application of them to building systems. Table 2 provides a list of key technologies needed to achieve this future and the capabilities for commissioning that each might provide.

Table 2.  Technologies Needed for Highly Automated Commissioning

Technology

Potential Applications

Wireless sensing, data acquisition, and control

Cost effective sensing and data collection
Condition monitoring

Plug and play building equipment and controls

Self-identifying equipment and automatic system design recognition
Rapid automatic self-configuration of controls
Automatic control algorithm selection and application

Embedded networked sensing and processing

Highly distributed processing of information with local control capabilities coordinated to meet system and building level objectives

Automated fault detection, diagnostics, and prognostics



Automatic detection and diagnosis of operation, equipment, and control faults
Automatic detection and diagnosis of designs and hardware installations
Anticipation of system and equipment degradation based on condition monitoring
Automatic generation of maintenance plans
Condition-based maintenance

Automated proactive testing

Automated startup and functional tests, analysis of data, and interpretation of results
Continual automated monitoring and testing

Automatic records management and data exchange protocols

Automatic generation of plans and reports
Automatic storage of data
Automated asset tracking
Automatic project management assistance

Wireless data communication will eliminate many of the wires required today to collect data or transmit control signals to device actuators. Wires can represent a significant fraction of the cost of a sensor or control point. As a result, wireless communication for sensors and controls will enable more ubiquitous use of sensing, increasing information on the operating state of systems and equipment available at any point in time and enabling better control and maintenance. Plug and play controls and equipment will enable quicker installation and set up of physical systems and controls. Controls will ultimately become self-writing, given some input on the performance objectives for the building and equipment characteristics. Small, embedded, networked processors will distribute control to a greater degree than today’s control systems, leading to better, higher resolution, system response while coordinating through networking with other subsystems and components to achieve building-level objectives.

Automated fault detection and diagnostics will lead to greater awareness of system conditions throughout buildings on a continuous basis (see Figure 1). Corrective actions will be enacted automatically by “aware” agents capable of correcting faults in some cases (e.g., correcting a control schedule or fixing an incorrect set point). In cases where automatic fault correction is not possible, notifications will be provided to building staff and management regarding faults and their costs. No longer will faults go unrecognized or will an engineer need to study data patterns to detect them. The operating state of building systems will be known along with the performance and cost impacts of problems so priorities for operation and maintenance can be made with complete information. Prognostic techniques will automatically predict the remaining serviceable life of equipment and suggest condition-based maintenance actions. Automated proactive testing will be the basis for short-term functional testing. These tests allow a wide range of conditions to be simulated over a relatively short period of time so that problems can be detected faster than if only passive observation of routine operation is used. Proactive testing will enable consistent performance of functional tests automatically during initial commissioning and then at regular periods throughout the life of the building.

Fault detection and diagnostic methods will have applications in design review in addition to use on physical components. Diagnosis of design is similar to diagnosis of a physical device. First a problem or fault is detected with the design. Evaluation of the design indicates that it does not satisfy some design criterion (requirement). This is analogous to fault detection. Then the reason for the fault existing (its cause) is identified or isolated, which is analogous to fault diagnosis or isolation. The design then needs to be revised to correct the deficiency, which parallels fault correction. When this entire process is automated, it will provide continuous review and evaluation of designs as they evolve. This will likely be done by automated agents (processes whose purpose is to execute part of the design review and report the results), each of which is responsible for evaluation with respect to a small subdomain. Some of these agents will specifically handle evaluations from the perspectives of commissioning.

Data exchange protocols will provide the basis for sharing data among automated agents as well as commissioning professionals, operating staff, and facility management. Radio frequency identification tags will also play a role in tracking assets as well as enabling easy, automatic identification of each piece of equipment and component, enabling automatic checking for consistency with specifications as equipment arrives on the construction site, and assessing its installation. Tags may also provide physical and performance characteristics from manufacturer tests, which then will become available to processes that evaluate the correctness of installation, develop control algorithms, evaluate functional test results, and monitor performance. Geographic information systems (GIS) as well as localization algorithms using wireless communications information (see, for example, Savvides et al. 2004) will be used to determine locations of equipment. Together these technologies will enable realization of highly automated commissioning and operation.

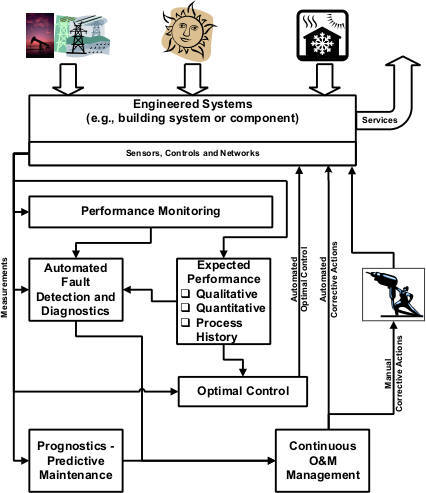

Figure 1. Advanced automated retro-commissioning process.

Figure 1. Advanced automated retro-commissioning process.

The Path To This Future

The impediments to realizing a future where building commissioning and retro-commissioning are largely automated are both technological, social and institutional. Without the technology, however, the vision is not possible. With it, automated capabilities for executing all but the management, repair, and replacement activities of retro-commissioning could be delivered as parts of equipment packages and control systems. With the addition of design tools, this could be extended to commissioning of new buildings. Advances in each of the technologies identified in Table 2 will be needed.

Because the buildings industries are highly fragmented, public R&D organizations will need to provide leadership to produce this technology. Even then, a market demand will need to develop to drive the creation of new equipment and control systems with automated commissioning capabilities. The building commissioning industry will evolve, gaining market share over time as energy and electric power prices increase and more burden for management of the electric power grid is pushed to end users (see, for example, http://gridwise.pnl.gov/ for a vision of the future electric power grid in which “customers” play an active role). Penetrating the market will require improved cost effectiveness for commissioning, as well as education of building owners and operators regarding the benefits of commissioning. Commissioning will need to change in ways that reduce cost while preserving or even enhancing the returns on it. The practice of commissioning will likely change gradually over time with the introduction of new tools that automate parts of the process.

Market transformation programs at the federal, regional, state and local levels can help spread the application of commissioning for the public good. Research, development, deployment and market transformation programs will be needed to accelerate the introduction of automated capabilities and the spread of commissioning, improving the performance of the building stock and bringing energy and environmental benefits. Still, the willingness of the commissioning profession to accept and embrace these technologies will be critical to determining their rate of penetration. Resistance won’t stop the introduction of the technologies, only delay their application, but earlier acceptance will help accelerate capture of the benefits associated with high-quality, widespread commissioning even if the mechanism of delivery changes.

Control Solutions, Inc Conclusions – A Call to Arms

Automation could change the nature of the commissioning process for both new and existing buildings. The services performed today as part of commissioning of existing buildings should become part of routine operation and maintenance with automated monitoring, testing, and diagnosis continually performed by the building systems and equipment themselves, taking much of the responsibility off humans.

Still, repairs and replacement of hardware will continue to require human intervention. Deteriorating bearings in pumps, failed windings in fan motors, and leaking valves will need humans to repair or replace them. Automation can only prompt repair technicians to take action to make repairs. Likewise, equipment found to be installed incorrectly during construction (e.g., a fan installed backwards) would require human involvement to remove and reinstall it properly. For the commissioning cycle to be complete, humans will still need to respond to information provided automatically.

The services provided by commissioning during design and construction should become integral parts of those phases of the building life cycle. Assurance of their proper consideration during these phases of building projects may still require an advocate, like the commissioning agent today, but ideally these responsibilities will be taken over by other members of design and construction teams. In any case, the provider of these services is likely to focus on design and construction, rather than responsibilities over the entire building life cycle.

System start up, like commissioning responsibilities during operation, is likely to become increasingly automated. Equipment and systems should become self-configuring, self-testing, and self-verifying. Even proper installation is likely to be automatically verified. Once again, though, when equipment and system components are found to be installed incorrectly, human technicians will still need to take responsibility to repair the installation. Equipment though may become intolerant to problems it detects (fail safe), refusing to start up until all problems it detects with the installation are corrected.

Automation will likely change the role of commissioning over time and in 20 or 30 years, its objectives may be met completely differently than they are today. These changes will not occur overnight but rather over many years, but they should lead to more cost effective delivery of the outcomes promoted by commissioning to a much broader segment of the commercial buildings market. Change is inevitable and will bring benefits. As with use of automation in design, detractors will find problems with greater use of automation in commissioning; proponents will grasp increased automation as an opportunity (Chastain 2002). The authors recommend that the building commissioning community embrace the opportunities posed by new technology and employ them to deliver better services.

Research and development will be required to achieve the benefits of greater automation in commissioning but so will adoption by the various players in the commissioning and broader buildings communities. Researchers and providers of services alike have the opportunity to transform the delivery of commissioning’s objectives by working in concert to pursue a vision in which those objectives are delivered faster, less expensively, more thoroughly, more consistently, more reliably, more cost effectively, and more continuously, to a broader market through automation.

References

Brambley, M. R. and S. Katipamula. 2004. “Beyond Commissioning.” In Breaking Out of the Box,
        Proceedings of the 2004 ACEEE Summer Study on Energy Efficiency in Buildings.

        Washington, DC: American Council for an Energy Efficient Economy.

Brambley, M. R. and S. Katipamula. 2003. “Automating Commissioning Activities: Update with Examples.”
        In Proceedings of the 11th National Conference on Building Commissioning
, May 20-22, 2003.
        Portland, Ore.: Portland Energy Conservation Inc.

Caldas, L. G. and L. K. Norford. 2002. “A Design Optimization Tool Based on a Genetic Algorithm.”
        Automation in Construction
11(2):173-184.

Chastain, T., Y. E. Kalay and C. Peri. 2002. “Square Peg in a Round Hole or Horseless Carriage?
        Reflections on the Use of Computing in Architecture.” Automation in Construction 11(2):237-248.

Claridge, David E, Charles H. Culp, Mengsheng Liu, S. Deng, Wayne D. Turner, and Jeffery S. Haberl. 2000.
        “Campus-Wide Continuous CommissioningSM of University Buildings.” In Proceedings of the 2000
        ACEEE Summer Study
. Washington, D.C.: American Council for an Energy Efficient Economy.

Fleming, U. and Z. Aygen. 2001. “A Hybrid Representation of Architectural Precedents.”
        Automation in Construction
10(6):687-699.

Fleming, U. and R. Waterbury. 1995. “Software Environment to Support Early Phases in Building Design (SEED):
        Overview.” Journal of Architectural Engineering 1(4):147-152.

Friedman, H. and M. A. Piette. 2001. Comparative Guide to Emerging Diagnostic Tools for Large Commercial
        HVAC Systems. LBNL 48629. Berkeley, Ca.: Lawrence Berkeley National Laboratory.
        Available online: http://www.peci.org/library/PECI_DxToolsGuide1_1002.pdf.

Gero, J. S. 2000. “Developments in Computer-Aided Design,” in INCITE 2000,
        H. Li, Q. Shen, D. Scott and P. Love (eds.), pp. 16-24. Hung Hom, Kowloon, Hong Kong: HKPU Press.

Gero, J. S. 2002. “Advances in IT for Building Design,” In Advances in Building Technology,
        M. Anson, J. Ko and E. Lam (eds.), pp. 47-54. Amsterdam: Elsevier.

Haasl, T. and T. Sharp. 1999. A Practical Guide for Commissioning Existing Building., Portland, Ore.: Portland
        Energy Conservation Inc. and Oak Ridge, Tenn.: Oak Ridge National Laboratory.

Iliescu, S., P. Fazio and K. Gowri. 2000. “Similarity Assessment in a Case-Based Reasoning Framework
        for Building Envelope Design.” In INCITE 2000, H. Li, Q. Shen, D. Scott and P. Love (eds.), pp. 697-713.
        Hung Hom, Kowloon, Hong Kong: HKPU Press.

Katipamula, S. and M. R. Brambley. 2005. “Methods for Fault Detection, Diagnostics and Prognostics for
        Building Systems – A Review.” Accepted for publication in 2005 by the International Journal of Heating,
        Ventilating, Air-Conditioning and Refrigerating Research.

Katipamula, S., M. R. Brambley, and L. Luskay. 2003. "Automated Proactive Techniques for Commissioning Air-Handling Units."
        ASME Journal of Solar Energy Engineering, Transactions of the ASME, Special Issue on Emerging Trends in Building Design,
        Diagnosis and Operation 125(1):282-291.

Liu, M., D. E. Claridge, and W. D. Turner. 2002. “Continuous CommissioningSM Guide Book.”
        Washington, D.C.: Federal Energy Management Program, U.S. Department of Energy.
        Available on the worldwide web at: http://www.eere.energy.gov/femp/pdfs/ccg01_covers.pdf.

Mills, E., H. Friedman, T. Powell, N. Bourassa, D. Claridge, T. Haasl, and M. A. Piette. 2004.
        The Cost-Effectiveness of Commercial Buildings Commissioning – A Meta-Analysis of Existing Buildings and
        New Construction in the United States
. LBNL-56637. Berkeley, Calif.: Lawrence Berkeley National Laboratory.
        Available online: http://eetd.lbl.gov/emills/PUBS/Cx-Costs-Benefits.html.

Portland Energy Conservation, Inc. (PECI) and Battelle Northwest Division. 2003. Methods for Automated and Continuous
        Commissioning of Building Systems.
Final Report. ARTI-21CR/610-30040-01. Air-Conditioning & Refrigeration Technology
        Institute, Washington, D.C. Available online: www.arti-21cr.org/research/completed/finalreports/30040-final.pdf.

Quantum Consulting. 2003. Market Progress Evaluation Report--Commissioning In Public Buildings Project, No. 3.
        Report #E03-107. Portland, Ore.: Northwest Energy Efficiency Alliance.
        Available online:http://www.nwalliance.org/resources/reports/107.pdf.

Savvides, A., M. Srivastava, L. Girod, and D. Estrin. 2004. Chapter 15 in Wireless Sensor Networks,
        C. S. Raghavendra, K. M. Sivalingam and T. Znati (eds.), pp. 327-349. Boston, Mass.: Kluwer Academic Publishers.

Song, Y., M. J. Clayton, and R. E. Johnson. 2002. “Anticipating Reuse: Documenting Buildings for Operations
        Using Web Technology.” Automation in Construction 11(2):185-197.

U.S. DOE. Undated. Building Commissioning – The Key to Quality Assurance.
        Washington, D.C.: U.S. Department of Energy, Rebuild America Program.
        Available online: http://www.rebuild.org/attachments/guidebooks/commissioningguide.pdf.


[1] An earlier version of this paper was presented at the 2004 ACEEE Summer Study on the Energy Efficiency of Buildings and is published in the proceedings of that conference (Brambley and Katipamula 2004).
[2] Operated by Battelle Memorial Institute for the U.S. Department of Energy.
[3] Throughout this paper, the authors use the term “commissioning” to represent generically all forms of the process applied to both new buildings during design and construction and existing buildings already in operation, as well as the specific process for new construction.  The context establishes which use is intended.
[4] A comprehensive review of fault detection, diagnostic, and prognostic methods can be found in Katipamula and Brambley 2005, and a recent review of tools using such methods is provided by Friedman and Piette 2001 (http://www.peci.org/library/PECI_DxToolsGuide1_1002.pdf).

Reliable Controls Some Related Automated Buildings Links:

A Wake-Up Call and a Brainer  Ask any economist worth his salt what the total impact on American industry would be if our gross use of energy were to decrease by 15% over the next 10 years.

Waking Up to Wireless Wireless…. WAKE UP it is here and it is now!

Wireless Mesh Sensor Networks  Enable Building Owners, Managers, and Contractors to Easily Monitor HVAC Performance Issues

If Buildings Were Built Like Cars The Potential for Information and Control Systems Technology in New Buildings

Autonomic Wireless Building Networks   The key to reliable ad hoc wireless networking for building automation applications and protocols is an Autonomic mesh network: an Autonomic network is one that self-configures, self-heals, self-regulates, and understands when to apply these parameters.

Reaping the Benefits of IP  How IP Access Technology is Making 'Intelligent Buildings' a Reality

Ending the Blackout Blues  We need (REALLY need) to improve the way our industry delivers more advanced technologies to our building construction projects

"IT" Could be the Start of Something Big  Now, with the growing use of building networks and the convergence of building controls and IT networks, it is becoming far easier to connect building occupants to the building control system by employing a simple "comfort and lighting" icon on each occupant's PC.

Web-Based Automation  Access to real-time information anywhere, anytime through an Internet-enabled automation system is the real value of this technology.

A "Black Box"  ...what Building Automation needs!

Web-Based Control Systems - Doing more with more  More access, more flexibility, more interoperability, wider area integration, but not more cost.

Web Based Facilities Operations Guide  Doing more with less by using Web-based anywhere information to amplify your existing building operational resources.

Building Systems Commissioning: Let Technology do the Heavy Lifting  Having the control network installed early in the construction phase allows the building automation system to do as much of the heavy lifting as possible including centralized data collection, analysis and reporting.

Tools for Commissioning and Building Tune Ups  The importance of building commissioning and tune-ups has recently taken center stage.

footer


Delta Controls
[Click Banner To Learn More]

[Home Page]  [The Automator]  [About]  [Subscribe ]  [Contact Us]

Events

Want Ads

Our Sponsors

Resources
