Scale & Integrate Disparate Building Management Systems
It’s Closer Than You Think
“Robots in every building? Not in my lifetime,” you may be thinking. Still, how many people, ten years ago, would have guessed that by 2009 your average electrician would be pulling CAT6 cable for VOIP lines? Or that your mom would be downloading grandchildrens’ photos to her home PC? Or that WiFi connectivity would be a requirement in every new commercial space of consequence?
Companies that keep pace with accelerating technological change grab market before stragglers even realize their core business has stepped sideways.
Now, forces are converging similarly to pull mobile robots into facilities. These forces include:
1. Building Information Model (BIM) requirements
2. Supplying data for LEED documentation
3. Staffing problems
4. Management & maintenance costs
5. High liability risks
6. Increasing security demands
Believe it or not, mobile robots – combined with that WiFi connectivity mentioned earlier – lie at the center of solutions to all these issues. Mobile robots, by the way, are the ones that drive around by themselves and talk, not the industrial arms used to build automobiles.
Let’s start with the BIM. Outside of buildings, satellite GPS has revolutionized construction, logistics and defense. What most people don’t know is that many robots have Local Positioning Systems (LPS) that work even more reliably than the outdoor systems. These robots create as-built raster scans of building interiors that resemble floor plans, except that they include all the building contents as well as the walls. These horizontal building scans may be taken at one-foot height, for robot and emergency response use, and at four-foot height, for architectural verification. The procedure measures about 1,000 sq ft per minute.

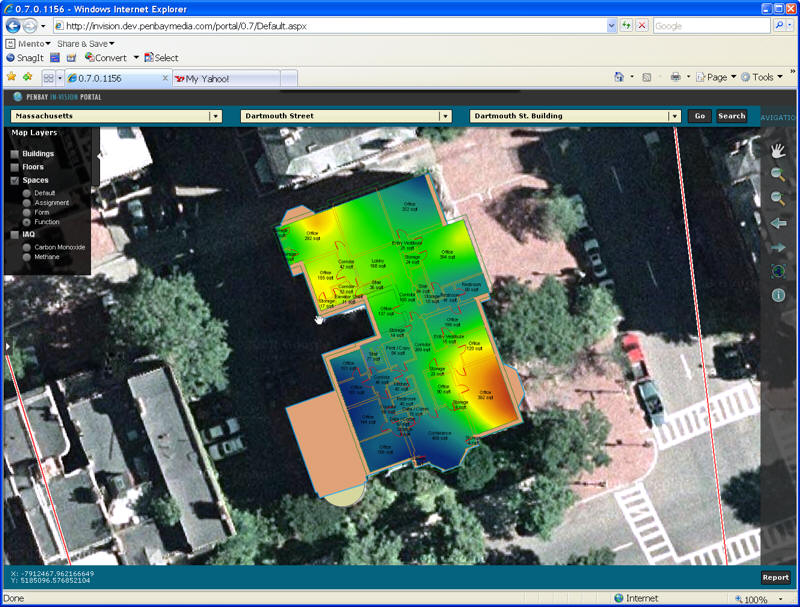

A robot scanned the interior of this building, while taking temperature readings; the data was fed into the facility GIS to create this BIM.
One of the biggest impediments to developing BIM for
existing buildings is the time and expense required to collect the base data for
basic BIM development. Automating the data collection process with spatial
robotics drives a significant amount of time and cost out of the data collection
process and delivers a spatially integrated set of data into the BIM. This
information can also be integrated with GIS to give local to global information
on the performance of facility assets inside and out.
Anyway, as soon as the interior scan has been compiled, mobile robots can drive autonomously in the space with Natural Feature Positioning Systems (NFPS). Robots use NFPS to plan routes through the building, similarly to the way autos use GPS. Since the robot knows where it is at all times (including which floor it is on), it can tag any sensor readings, photographs, audio recordings and actions with location- as well as time-stamps. Being on the network, these robots can interact with electronic doors, elevators and access control systems. They can also notify the building control system if they encounter conditions that require immediate action.
Most autonomous robots can
perform multiple functions simultaneously.

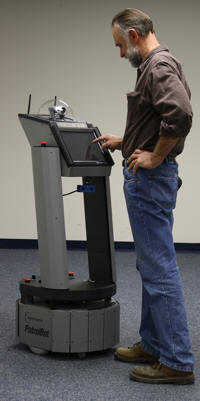

This kiosk-style robot guides visitors during the day, handles security at night and takes environmental readings 24X7.
What all this means is that many robots with LPS:
1. Create as-built space scans for verification, space utilization and other parts of the BIM. These scans also make the building “robot ready” for many other robots that use similar LPS scans for navigation.
2. Support Green Building standards by supplying time- and location-stamped data for monitoring and optimizing temperature, radiation, air quality and other energy and environmental characteristics
3. Can take repeated photos of the same view and provide 2-way audio from the same location, for:
a. documenting insurance issues to reduce liability,
b. analyzing damage remotely to reduce management costs,
c. inspecting maintenance work remotely, also to reduce management costs,
d. checking safety, quality & compliance with regularly and reliably
e. enable remote surveillance and/or apply video analytics for automated detection of intruders, to improve security and reduce costs
f. remotely checking on staff activities, to improve efficiency
g. responding to some types of emergencies
4. Pick up and drop off supplies, food, beverages, packages, luggage, medicine, emergency equipment and other goods
5. Complete regularly scheduled environmental sampling protocols without human guidance , for example, in a data center, where hot spots emerge and disappear quickly during any given day.
6. Guide or transport visitors, residents and staff to and from various parts of a building
Oh, and a single robot might be responsible for many of these tasks simultaneously.
These are not future dream applications, by the way, or experiments taking place in research labs. These robots are all being used in commercial settings now, up and running for a year or more, thousands of miles a month. Some mobile robots operate alone or in pairs. Some run in large fleets. They are in hospitals, labs, factories and pharmaceutical companies. Soon they will be in data centers and hotels.
And did you notice…. we didn’t even mention vacuuming or floor care? That’s because no one has yet productized LPS and NFPS in commercial floor care yet. But expect it before long.
